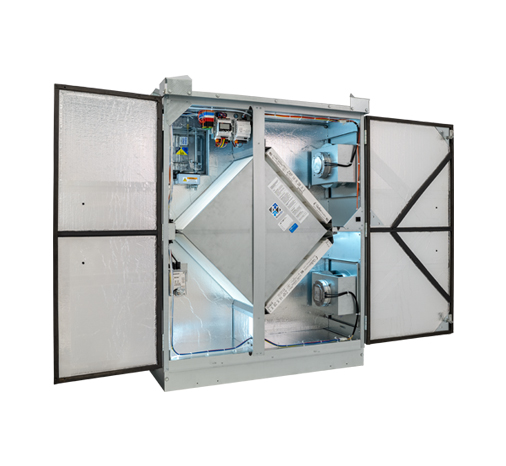

Application Type:Rooftop
Ventilation Type:Static plate, heat and humidity transfer
Typical Airflow Range:166-694 CFM
AHRI 1060 Certified Core:One L85-G5
OA Filter(s):Total Qty. 1, MERV 8: 14" x 20" x 2"
RA Filter(s):Total Qty. 1, MERV 8: 14" x 20" x 2"
Dimensions:60" L x 30" W x 82 1/4" H
Weight:218-373 lbs. (varies by option)
Find a Representative
Installation Location
[RT] Outdoor Unit

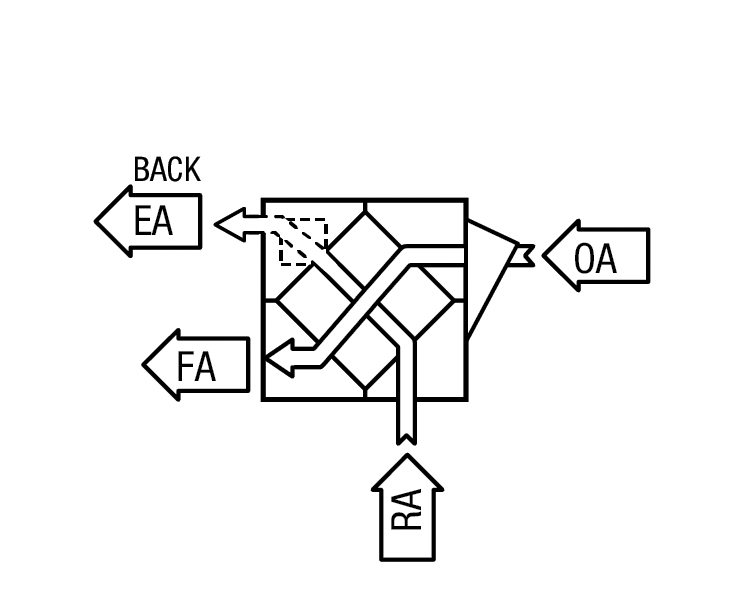

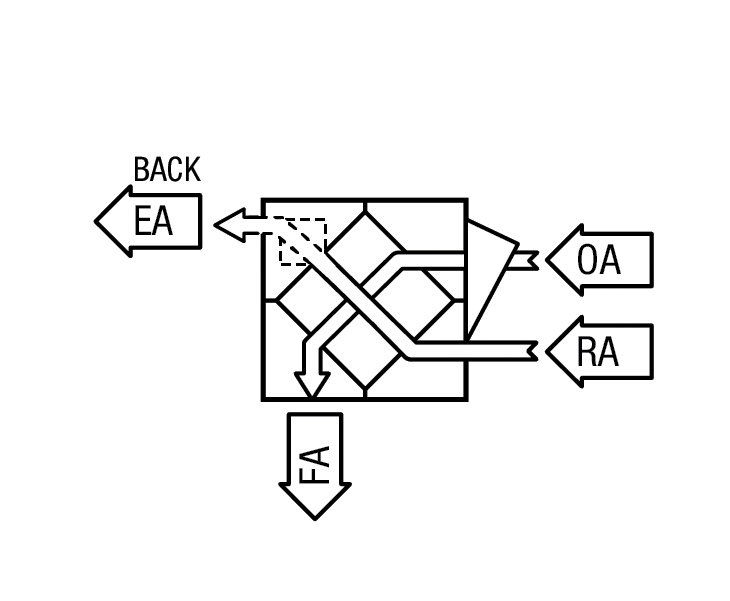

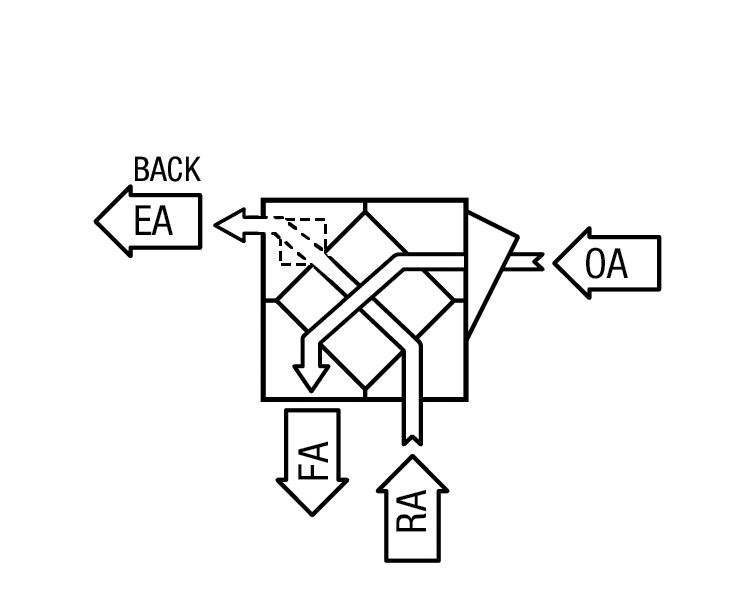

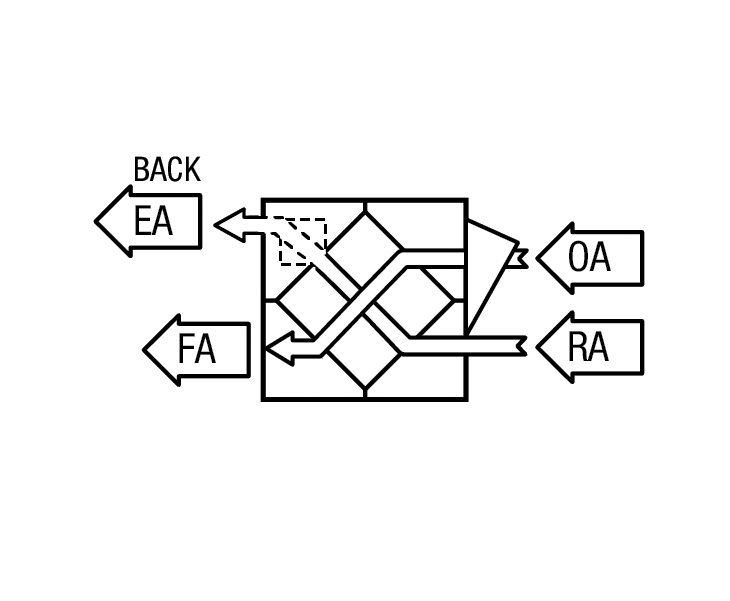

Orientation
H

V

F

R

Electrical Service
[11] 120V / 1 Phase / 60 Hz
[15] 208-230V / 1 Phase / 60 Hz
Fan Control
[G] Terminal Strip For EC Motors
Supply Air Motor
[A] Advanced EC Direct Drive Motorized Impeller
[B] Intermediate EC Direct Drive Motorized Impeller
[E] ECM - Direct Drive Motorized Impeller​
Exhaust Air Motor
[A] Advanced EC Direct Drive Motorized Impeller
[B] Intermediate EC Direct Drive Motorized Impeller
[E] ECM - Direct Drive Motorized Impeller​
Controls
[T] Standard Unit Control Wiring - 24 VAC Transformer/Relay Package
Integrated Programmable Controls - Enhanced
RenewAire Integrated Programmable Controls Brochure | PDF (925KB)
Enhanced Controls Manual (PDF) | PDF (11MB)
Integrated Programmable Controls - Premium
RenewAire Integrated Programmable Controls Brochure | PDF (925KB)
Premium Controls Manual (PDF) | PDF (18MB)
BACnet Factory Activation Available on Enhanced or Premium Packages
Cross-core Differential Pressure Ports
Unit Fusing
[N] Non-fused (Standard)
[F] Fused
Bypass Isolation Dampers
[5] Face and Bypass Dampers Only (Standard)​
[6] Motorized Dampers All Airstreams
Isolation Dampers
[-] No Dampers (Standard)
[D] Motorized Dampers Both Airstreams
[E] Motorized Damper EA or RA Airstream
[F] Motorized Damper FA or OA Airstream
Filter Type
MERV 8 (Standard)
Filter Monitor
[-] None
[F] Filter Monitor Both Airstreams
Wall
[S] Single (Standard)
[D] Double
Paint
[-] None
[W] White Paint
[C] Custom Paint
Controls
BACnet Fan Control, SL, EV Premium, HE, LE, P/N 105801BACNETFC-W
BACnet Fan Control Supplement (PDF) | PDF (1MB)
Digital Time Clock, SL, EV, EV Premium, HE, LE, RD, P/N 131300
Wall Mount, TC7D-W
Digital Time Clock Manual TC7D (PDF) | PDF (1MB)
Digital Time Clock, SL, EV, EV Premium, HE, LE, RD, P/N 131301
Exterior Enclosure, TC7D-E
Digital Time Clock Manual TC7D (PDF) | PDF (1MB)
Occupancy Sensor, SL, EV, EV Premium, HE, LE, RD, DN, P/N 131302
Ceiling Mount, MC-C
Occupancy Sensor Manual (PDF) | PDF (1MB)
Occupancy Sensor, SL, EV, EV Premium, HE, LE, RD, DN, P/N 131303
Wall Mount, MC-W
Occupancy Sensor Manual (PDF) | PDF (1MB)
CO2 Sensor, SL, EV Premium, HE, LE, RD, DN, P/N 131304
Wall Mount, CO2-W
CO2 Accessory Control Manual (PDF) | PDF (1MB)
CO2 Sensor, SL, EV, EV Premium, HE, LE, RD, DN, P/N 131305
Duct Mount, CO2-D
CO2 Accessory Control Manual (PDF) | PDF (1MB)
IAQ Sensor, SL, EV, EV Premium, HE, LE, RD, DN, P/N 131307
Duct Mount, IAQ-D
IAQ Wiring Supplement (PDF) | PDF (1MB)
IAQ Sensor, SL, EV, EV Premium, HE, LE, RD, DN, P/N 131308
Wall Mount, IAQ-W
IAQ Wiring Supplement (PDF) | PDF (1MB)
Smoke Detector, HE, LE, RD, DN, P/N 102396
Duct Mount, SD-D
Remote Display, HE, LE, RD, DN, P/N 131311
Units with Enhanced or Premium Controls, Handheld/Wall Mount RD-M
Room Pressure Sensor, HE, LE, RD, DN, P/N 131314
Sensor with Display, Units with Premium Controls, RPS-WD
Room Pressure Sensor, HE, LE, RD, DN, P/N 131310
Sensor without Display, Units with Premium Controls, RPS-WOD
Duct Static Pressure Sensor, HE, LE, RD, DN, P/N 131315
Sensor with Display, Units with Premium Controls, DPS-WD
Duct Static Pressure Sensor, HE, LE, RD, DN, P/N 131309
Sensor without Display, Units with Premium Controls, DPS-WOD
Temperature Sensor Kit, HE, LE, RD, DN, P/N 131318
Units with Premium Controls for non-integrated heating, TS
BACNet License Field Request, HE, LE, RD with Enhanced or Premium Controls, P/N 131316
Potentiometer Speed Control, HE05, HE07, HE10, HE1.5X, P/N 147050
Remote Installed for ECM, SCECM 1 per unit
Not needed when units have Programmable Controls
Combo Curbs
Engineered Combo Curb, HE07RT, P/N 147586
Carrier ECCWF07
Engineered Combo Curb, HE07RT, P/N 147588
Carrier ECCWG07
Engineered Combo Curb, HE07RT, P/N 147581
Trane ECTPCD07
Engineered Combo Curb, HE07RT, P/N 147579
Trane ECTPB07
Curbs
Roof Curb, HE07RT, P/N 147435
Standard 14"
HE07-RT Curb Dimension Drawing (DWG) | File (505KB)
HE07-RT Curb Dimension Drawing (PDF) | PDF (54KB)
Curb Clips
Curb Wind Clip, HE-1XRT/HE1.5RT, P/N 1XHECC
Filters
Filter, HE07 HE1.5, RD, HE-2XRTC, P/N 990080
MERV 8 14"x20"x2" Single Filter
Filter, HE07, HE1.5, RD, HE-2XRTC, P/N 990091
MERV 8 14"x20"x2" Case of 12
Filter, HE07, HE1.5, RD, HE-2XRTC, P/N 990300
MERV 13 14"x20"x2" Single Filter
Dampers
Backdraft Damper, HE05-07, P/N 102402
10", BD10
RenewAire Hoods and Dampers | PDF (409KB)
Backdraft Damper, HE05-10, P/N 102403
12", BD12
RenewAire Hoods and Dampers | PDF (409KB)
Balancing Damper, BR, SL, GR, EV, EV Premium, HE, LE, P/N 131400
4", ABV-4
Automatic Balancing Damper IOM | PDF (831KB)
Balancing Damper, BR, SL, GR, EV, EV Premium, HE, LE, P/N 131401
5", ABV-5
Automatic Balancing Damper IOM | PDF (831KB)
Balancing Damper, BR, SL, GR, EV, EV Premium, HE, LE, P/N 131402
6", ABV-6
Automatic Balancing Damper IOM | PDF (831KB)
Duct Transitions and Adapters
Flange Kit, HE07, P/N 147599
Rectangular 12" x 12", 2 flanges 07HEDF
Mounting
Select four isolators per unit with the proper load ratings per unit corner weights. See weight and center of gravity table in IOM.
HE07RT CSI
HE07RT_PDF | PDF (269KB)
HE07RT_DOC | Word Doc (32KB)
